在Spring Boot程序中上传和下载文件

在Spring Boot程序中上传和下载文件

Spring Boot(十一)— 文件上传和下载

文件上传和下载是Web应用程序比较常用的功能之一,在本章节中,我将以一个简单的案例来讲解在Spring Boot中如何进行文件的上传与下载。在开始正文之前,我们通过一张思维导图来了解一下文件上传与下载的简单流程:

文件上传与下载思维导图

1. 文件上传

对于文件上传,控制器中对应的上传方法的参数必须是MultipartFile对象,MultipartFile对象可以是一个数组对象,也可以是单个对象,如果是一个数组对象,则可以进行多文件上传;这里我们仅演示单个文件上传,下面的代码展示了文件上传方法的基本结构:

@PostMapping(value = "/upload",consumes = MediaType.MULTIPART_FORM_DATA_VALUE)
@ResponseBody
public String fileUpload(@RequestParam("file") MultipartFile file) throws IOException {
    return null;
}

接下来,我们使用FileOutputStream对象将客户端上传的文件写入到磁盘中,并返回“File is upload successfully”的提示信息,下面是文件上传完整的代码:

package com.ramostear.application.controller;

import com.ramostear.application.model.FileInfo;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;

import javax.annotation.PostConstruct;
import java.io.*;
import java.util.HashMap;
import java.util.Map;

/**
 * @author : ramostear
 * @date : 2019/3/8 0008-15:35
 */
@Controller
public class FileController {


    @Value ( "${file.upload.root.dir}" )
    String fileUploadRootDir;

    private static Map<String,FileInfo> fileRepository = new HashMap<>();

    @PostConstruct
    public void initFileRepository(){
        FileInfo file1 = new FileInfo ().setFileName ( "bg1.jpg" );
        FileInfo file2 = new FileInfo ().setFileName ( "bg2.jpg" );
        FileInfo file3 = new FileInfo ().setFileName ( "bg3.jpg" );
        fileRepository.put ( file1.getName (),file1 );
        fileRepository.put ( file2.getName (),file2 );
        fileRepository.put ( file3.getName (),file3 );
    }

@PostMapping(value = "/upload",consumes = MediaType.MULTIPART_FORM_DATA_VALUE)
@ResponseBody
public String fileUpload(@RequestParam("file") MultipartFile file) throws IOException {

        File convertFile = new File ( fileUploadRootDir+file.getOriginalFilename ());
        FileOutputStream fileOutputStream = new FileOutputStream ( convertFile );
        fileOutputStream.write ( file.getBytes () );
        fileOutputStream.close ();

        FileInfo fileInfo = new FileInfo()
                .setFileName ( file.getOriginalFilename());

        fileRepository.put ( fileInfo.getName (),fileInfo);

        return "File is upload successfully";
    }
}

fileRepository用于存放已上传文件的索引信息。

2. 文件下载

在Spring Boot应用程序中,我们可以使用InputStreamResource对象来下载文件,在下载文件的方法中,我们需要通过Response来设置HttpHeander对象的相关属性,如Content-DispositionCache-ControlPragmaExpires等属性。除此之外,还需要指定Response的响应类型。下面的代码给出了文件下载的详细信息:

@GetMapping("/download/{fileName}")
@ResponseBody
public ResponseEntity<Object> downloadFile(@PathVariable(name = "fileName") String fileName) throws FileNotFoundException {

        File file = new File ( fileUploadRootDir+fileName);
        InputStreamResource resource = new InputStreamResource ( new FileInputStream ( file ) );

        HttpHeaders headers = new HttpHeaders();
        headers.add ( "Content-Disposition",String.format("attachment;filename=\"%s",fileName));
        headers.add ( "Cache-Control","no-cache,no-store,must-revalidate" );
        headers.add ( "Pragma","no-cache" );
        headers.add ( "Expires","0" );

        ResponseEntity<Object> responseEntity = ResponseEntity.ok()
                .headers ( headers )
                .contentLength ( file.length ())
                .contentType(MediaType.parseMediaType ( "application/txt" ))
                .body(resource);

        return responseEntity;
    }

3. 代码清单

3.1 文件上传和下载控制器

下面给出的是完整的文件上传和下载的代码:

package com.ramostear.application.controller;

import com.ramostear.application.model.FileInfo;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.core.io.InputStreamResource;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;

import javax.annotation.PostConstruct;
import java.io.*;
import java.util.Collection;
import java.util.HashMap;
import java.util.Map;

/**
 * @author : ramostear
 * @date : 2019/3/8 0008-15:35
 */
@Controller
public class FileController {


    @Value ( "${file.upload.root.dir}" )
    String fileUploadRootDir;

    private static Map<String,FileInfo> fileRepository = new HashMap<>();

    @PostConstruct
    public void initFileRepository(){
        FileInfo file1 = new FileInfo ().setFileName ( "bg1.jpg" );
        FileInfo file2 = new FileInfo ().setFileName ( "bg2.jpg" );
        FileInfo file3 = new FileInfo ().setFileName ( "bg3.jpg" );
        fileRepository.put ( file1.getName (),file1 );
        fileRepository.put ( file2.getName (),file2 );
        fileRepository.put ( file3.getName (),file3 );
    }

    @GetMapping("/files")
    public String files(Model model){
        Collection<FileInfo> files = fileRepository.values ();
        model.addAttribute ( "data",files );
        return "files";
    }


    @PostMapping(value = "/upload",consumes = MediaType.MULTIPART_FORM_DATA_VALUE)
    @ResponseBody
    public String fileUpload(@RequestParam("file") MultipartFile file) throws IOException {

        File convertFile = new File ( fileUploadRootDir+file.getOriginalFilename ());
        FileOutputStream fileOutputStream = new FileOutputStream ( convertFile );
        fileOutputStream.write ( file.getBytes () );
        fileOutputStream.close ();

        FileInfo fileInfo = new FileInfo()
                .setFileName ( file.getOriginalFilename());

        fileRepository.put ( fileInfo.getName (),fileInfo);

        return "File is upload successfully";
    }

    @GetMapping("/download/{fileName}")
    @ResponseBody
    public ResponseEntity<Object> downloadFile(@PathVariable(name = "fileName") String fileName) throws FileNotFoundException {

        File file = new File ( fileUploadRootDir+fileName);
        InputStreamResource resource = new InputStreamResource ( new FileInputStream ( file ) );

        HttpHeaders headers = new HttpHeaders();
        headers.add ( "Content-Disposition",String.format("attachment;filename=\"%s",fileName));
        headers.add ( "Cache-Control","no-cache,no-store,must-revalidate" );
        headers.add ( "Pragma","no-cache" );
        headers.add ( "Expires","0" );

        ResponseEntity<Object> responseEntity = ResponseEntity.ok()
                .headers ( headers )
                .contentLength ( file.length ())
                .contentType(MediaType.parseMediaType ( "application/txt" ))
                .body(resource);

        return responseEntity;
    }



}

3.2 数据模型

创建一个文件信息数据模型作为上传文件信息的载体,下面是FileInfo.java的代码:

package com.ramostear.application.model;

import lombok.Data;

import java.util.Date;

/**
 * @author : ramostear
 * @date  : 2019/3/8 0008-15:25
 */
@Data
public class FileInfo {

    private String name;
    private Date uploadTime = new Date();

    public FileInfo setFileName(String name){
        this.setName ( name );
        return this;
    }

}

3.3 Maven build 文件

下面是本次demo应用程序的pom.xml文件配置清单:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.ramostear</groupId>
    <artifactId>file-handling</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>file-handling</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-freemarker</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

注:本次案例使用freemarker模板引擎作为视图模板

3.4 配置文件

application.properties文件主要设置了freemarker的相关属性以及自定义的file.upload.root.dir 属性:

spring.freemarker.cache=false
spring.freemarker.prefix=
spring.freemarker.suffix=.html
spring.freemarker.enabled=true
spring.freemarker.charset=UTF-8
spring.freemarker.template-loader-path=classpath:/templates/
file.upload.root.dir = C:/work/upload/

file.upload.root.dir自定义属性设置了文件上传的更目录为:C:/work/upload/

3.5 视图

在视图文件中,创建了一个form表单用于上传文件,另外还创建了一个已上传文件列表,提供文件下载操作。

文件上传表单:

上传文件form表单

文件下载列表:

文件下载列表

说明:文件上使用的是异步上传方式进行上传,没有使用同步提交form表单的方式进行

文件上传异步操作代码如下:

$("#upload").on("click",function () {
           var fileObj = document.getElementById("file").files[0];
           var form = new FormData();
           form.append("file",fileObj);
           var xhr = new XMLHttpRequest();
           xhr.open("post","http://localhost:8080/upload",true);
           xhr.onload = function(event){
               alert(event.currentTarget.responseText);
               window.location.href = window.location.href;
           };
           xhr.send(form);
        });

4. 打包运行

使用Maven命令对应用程序进行打包,下面是maven打包的命令:

mvn clean install

在控制台窗口中运行上述命令,等待maven打包。若控制台中显示“BUILD SUCCESS”信息,你可以在当前工程目录下的target文件夹中找到相应的JAR文件。

现在,你可以使用下面的命令来运行JAR文件:

java -jar YOUR_JARFILE_NAME

JAR文件成功启动后,你可以在控制台窗口中看到如下的信息:

控制台窗口信息

5. 测试

打开浏览器并在地址栏输入:http://localhost:8080/files 。下面是成功请求后的浏览器截图:
文件列表

接下来,点击其中任意一个download按钮,测试文件下载功能是否正常:
下载文件

最后,我们测试一下文件上传功能是否正常。在进行测试之前,我们先看一下文件上传目录中存储的文件信息:

文件上传目录

接下来,我们选择一份需要上传的文件,然后点击upload按钮上传文件:

上传文件

此时,文件以及上传成功,我们再次观察文件上传目录中的文件信息,以验证文件是否成功写入磁盘:

文件上传目录对比

6. 附件

本章节的全部源代码已经上传至Github代码仓库中,你可以访问下面的地址获得全部的源码:https://github.com/ramostear/Spring-Boot-File-Handling-Tutorial

使用RestTemplate对Restful服务进行调用

使用RestTemplate对Restful服务进行调用

Spring Boot(十)— RestTemplate

Spring Boot提供的RestTemplate类可以在应用中调用Restful Web服务,这极大的简化了与Http服务的通信方式,统一了Restful服务调用的标准,其内部对Http进行了封装,我们只需要传递相应的URL、请求方法、主体信息以及返回值类型即可,相比于HttpClient,RestTemplate以一种更优雅的方式对Restful Web服务进行调用。下面是的代码展示了如何使用@Bean注解创建RestTemplate并进行连接。

package com.ramostear.application;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;

@SpringBootApplication
public class RestTemplateApplication {

    public static void main(String[] args) {
        SpringApplication.run(RestTemplateApplication.class, args);
    }

    @Bean
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }
}

接下来,我将演示不同请求方法下如何使用RestTemplate。在开始正文之前,我们需要创建一个提供Restful Web Service的控制器,下面给出的代码显示了控制器的详细内容:

package com.ramostear.application.controller;

import com.ramostear.application.model.User;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

import javax.annotation.PostConstruct;
import java.util.HashMap;
import java.util.Map;

/**
 * @author ramostear
 * @create-time 2019/3/6 0006-3:14
 * @modify by :
 * @since:
 */
@RestController
public class UserServiceController {

    private static Map<Long,User> userRepository = new HashMap<>();

    @PostConstruct
    public void initUserRepository(){
        User admin = new User();
        admin.setId(1).setName("admin");
        userRepository.put(admin.getId(),admin);

        User editor = new User();
        editor.setId(2).setName("editor");
        userRepository.put(editor.getId(),editor);
    }

    @GetMapping("/users")
    public ResponseEntity<Object> getUser(){
        return new ResponseEntity<>(userRepository.values(), HttpStatus.OK);
    }

    @PostMapping("/users")
    public ResponseEntity<Object> createUser(@RequestBody User user){
        userRepository.put(user.getId(),user);
        return new ResponseEntity<>("User is created successfully",HttpStatus.CREATED);
    }

    @PutMapping("/users/{id}")
    public ResponseEntity<Object> updateUser(@PathVariable(name = "id") long id,@RequestBody User user){
        userRepository.remove(id);
        user.setId(id);
        userRepository.put(id,user);
        return new ResponseEntity<>("User is updated successfully",HttpStatus.OK);
    }

    @DeleteMapping("/users/{id}")
    public ResponseEntity<Object> delete(@PathVariable(name = "id") long id){
        userRepository.remove(id);
        return new ResponseEntity<>("User is deleted successfully",HttpStatus.OK);
    }

}

除此之外,还需要创建一个数据模型作为用户信息的载体,下面的代码给出了用户数据模型的详细信息:

package com.ramostear.application.model;

import lombok.Getter;
import lombok.NoArgsConstructor;
import lombok.Setter;

/**
 * @author ramostear
 * @create-time 2019/3/6 0006-3:12
 * @modify by :
 * @since:
 */
@Getter
@Setter
@NoArgsConstructor
public class User {
    private long id;
    private String name;

    public User setId(long id){
        this.id = id;
        return this;
    }

    public User setName(String name){
        this.name = name;
        return this;
    }
}

1. HTTP GET请求

现在,我们可以使用RestTemplate的exchange()方法来请求URL为http://localhost:8080/usersGET API。下面将给出RestTemplate调用Restful Web服务的基本流程:

  • 创建RestTemplate对象,这里使用@AutoWired注解进行自动装配
  • 使用HttpHeaders对象设置请求头参数
  • 使用HttpEntity包装类对请求对象进行包装
  • 调用exchange()方法,并传入URL、HttpMethod以及返回值类型

下面的代码显示了使用RestTemplate的exchange()方法调用Restful Web服务的详细过程:

@RestController
public class UserWebService {

    @Autowired
    RestTemplate restTemplate;

    private static final String ROOT_URI = "http://localhost:8080/users";

    @GetMapping("/rest/template/users")
    public String getUsers(){
        HttpHeaders headers = new HttpHeaders();
        headers.setAccept(Arrays.asList(MediaType.APPLICATION_JSON));
        HttpEntity<String> entity = new HttpEntity<>(headers);
        return restTemplate.exchange(ROOT_URI, HttpMethod.GET,entity,String.class).getBody();
    }
}

2. HTTP POST请求

RestTemplate调用POST API的流程与调用GET API的流程基本相同,现在,我们使用RestTemplate调用POST API创建一个新的用户。相比调用GET API,唯一不同的地方在于需要把用户信息包装到请求主体中,同时需要将请求方法修改为POST。下面的代码展示了如何调用POST API:

@RestController
public class UserWebService {

    @Autowired
    RestTemplate restTemplate;

    private static final String ROOT_URI = "http://localhost:8080/users";

    @PostMapping("/rest/template/users")
    public String createdUser(@RequestBody User user){
        HttpHeaders headers = new HttpHeaders();
        headers.setAccept(Arrays.asList(MediaType.APPLICATION_JSON));
        HttpEntity<User> entity = new HttpEntity<>(user,headers);
        return restTemplate.exchange(ROOT_URI,HttpMethod.POST,entity,String.class).getBody();
    }
}

3. HTTP PUT 请求

接下来,使用RestTemplate调用PUT API对用户信息进行修改,与调用POST API的方法相同,我们需要将待修改的用户信息包装到请求主体中,同时需要修改请求方法为PUT。下面代码展示了如何调用PUT API:

@RestController
public class UserWebService {

    @Autowired
    RestTemplate restTemplate;

    private static final String ROOT_URI = "http://localhost:8080/users";

   @PutMapping("/rest/template/users/{id}")
    public String updateUser(@PathVariable(name = "id")long id,@RequestBody User user){
        HttpHeaders headers = new HttpHeaders();
        headers.setAccept(Arrays.asList(MediaType.APPLICATION_JSON));
        HttpEntity<User> entity = new HttpEntity<>(user,headers);
        return restTemplate.exchange(ROOT_URI+"/"+id,HttpMethod.PUT,entity,String.class).getBody();
    }
}

4. HTTP DELETE请求

RestTemplate调用DELETE API的方法与上述三种请求方法基本一致,需要注意的是HttpMethod的设置,需要设置为DELETE。下面的代码展示了如何调用DELETE API删除用户信息:

@RestController
public class UserWebService {

    @Autowired
    RestTemplate restTemplate;

    private static final String ROOT_URI = "http://localhost:8080/users";

   @DeleteMapping("/rest/template/users/{id}")
    public String deleteUser(@PathVariable(name = "id")long id){
        HttpHeaders headers = new HttpHeaders();
        headers.setAccept(Arrays.asList(MediaType.APPLICATION_JSON));
        HttpEntity<User> entity = new HttpEntity<>(headers);
        return restTemplate.exchange(ROOT_URI+"/"+id,HttpMethod.DELETE,entity,String.class).getBody();
    }
}

5. 代码清单

下面给出的是完整的RestTemplate调用Restful Web服务的代码:

package com.ramostear.application.webservice;

import com.ramostear.application.model.User;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpEntity;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpMethod;
import org.springframework.http.MediaType;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.client.RestTemplate;

import java.util.Arrays;

/**
 * @author ramostear
 * @create-time 2019/3/8 0008-0:36
 * @modify by :
 * @since:
 */
@RestController
public class UserWebService {

    @Autowired
    RestTemplate restTemplate;

    private static final String ROOT_URI = "http://localhost:8080/users";

    @GetMapping("/rest/template/users")
    public String getUsers(){
        HttpHeaders headers = new HttpHeaders();
        headers.setAccept(Arrays.asList(MediaType.APPLICATION_JSON));
        HttpEntity<String> entity = new HttpEntity<>(headers);
        return restTemplate.exchange(ROOT_URI, HttpMethod.GET,entity,String.class).getBody();
    }

    @PostMapping("/rest/template/users")
    public String createdUser(@RequestBody User user){
        HttpHeaders headers = new HttpHeaders();
        headers.setAccept(Arrays.asList(MediaType.APPLICATION_JSON));
        HttpEntity<User> entity = new HttpEntity<>(user,headers);
        return restTemplate.exchange(ROOT_URI,HttpMethod.POST,entity,String.class).getBody();
    }

    @PutMapping("/rest/template/users/{id}")
    public String updateUser(@PathVariable(name = "id")long id,@RequestBody User user){
        HttpHeaders headers = new HttpHeaders();
        headers.setAccept(Arrays.asList(MediaType.APPLICATION_JSON));
        HttpEntity<User> entity = new HttpEntity<>(user,headers);
        return restTemplate.exchange(ROOT_URI+"/"+id,HttpMethod.PUT,entity,String.class).getBody();
    }

    @DeleteMapping("/rest/template/users/{id}")
    public String deleteUser(@PathVariable(name = "id")long id){
        HttpHeaders headers = new HttpHeaders();
        headers.setAccept(Arrays.asList(MediaType.APPLICATION_JSON));
        HttpEntity<User> entity = new HttpEntity<>(headers);
        return restTemplate.exchange(ROOT_URI+"/"+id,HttpMethod.DELETE,entity,String.class).getBody();
    }
}

Maven build 文件 — pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.ramostear</groupId>
    <artifactId>rest-template</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>rest-template</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

应用程序主文件 — RestTemplateApplication.java:

package com.ramostear.application;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;

@SpringBootApplication
public class RestTemplateApplication {

    public static void main(String[] args) {
        SpringApplication.run(RestTemplateApplication.class, args);
    }

    @Bean
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }
}

6. 打包运行

现在,可以使用下面的命令创建一个可执行的jar文件,并运行该jar文件。

使用maven命令创建可执行的jar文件:

mvn clean install

执行此命令,当控制台窗口显示“BUILD SUCCESS”信息后,你可以在当前工程目下的target子目录中找到创建的JAR文件。

接下来,使用以下命令运行创建的JAR文件:

java -jar JARFILE

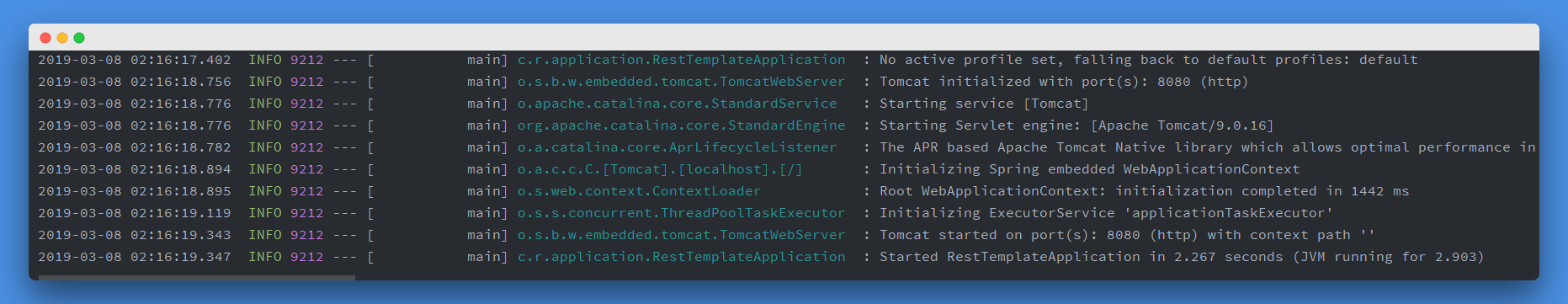

执行命令,并观察控制台窗口输出的日志信息。

7. 测试

启动Postman应用程序,在地址栏中输入以下的URL,并观察测试结果。

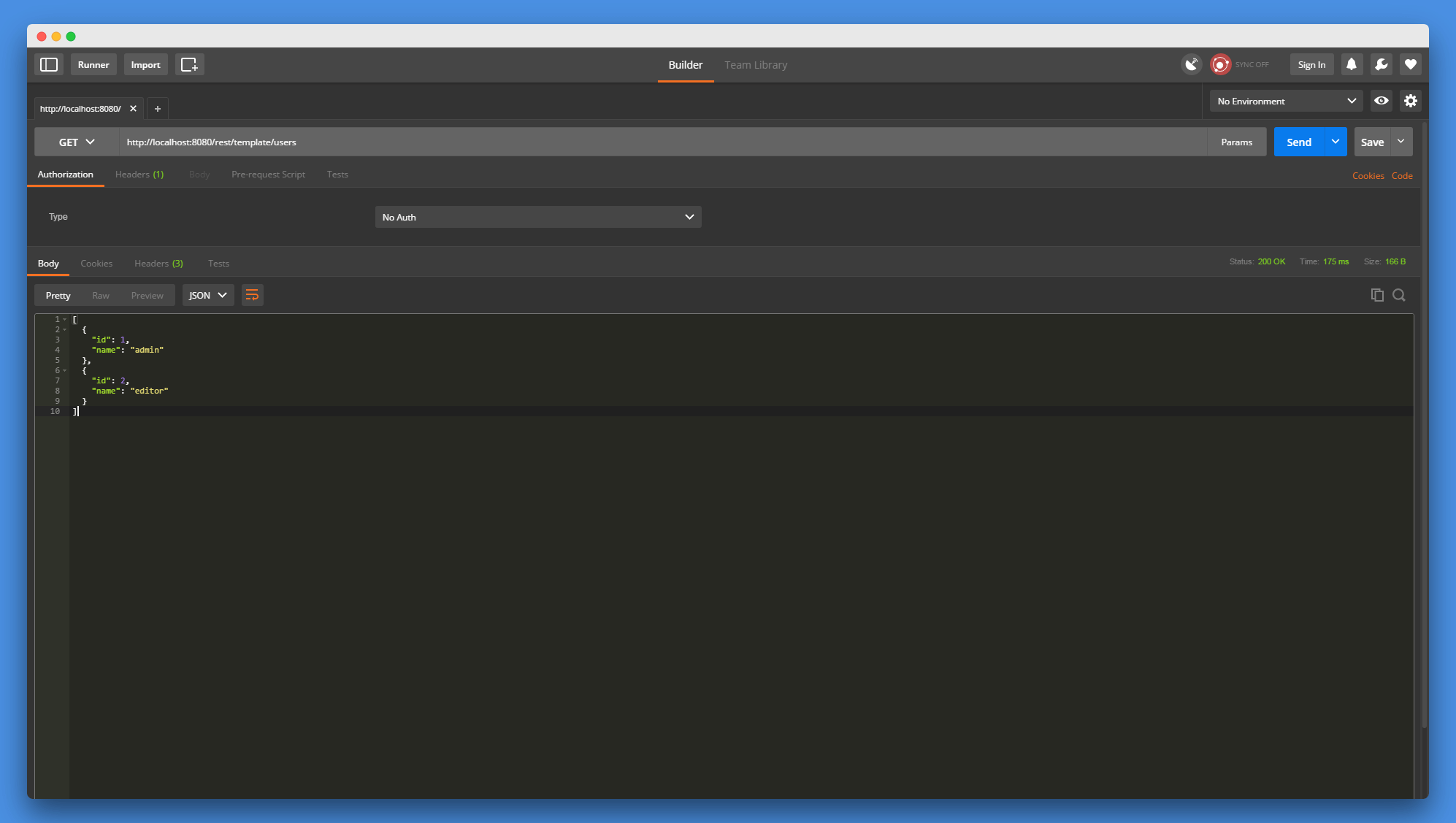

7.1 通过RestTemplate获取用户信息

请求URL:http://localhost:8080/rest/template/users

请求方法:GET

参数:无

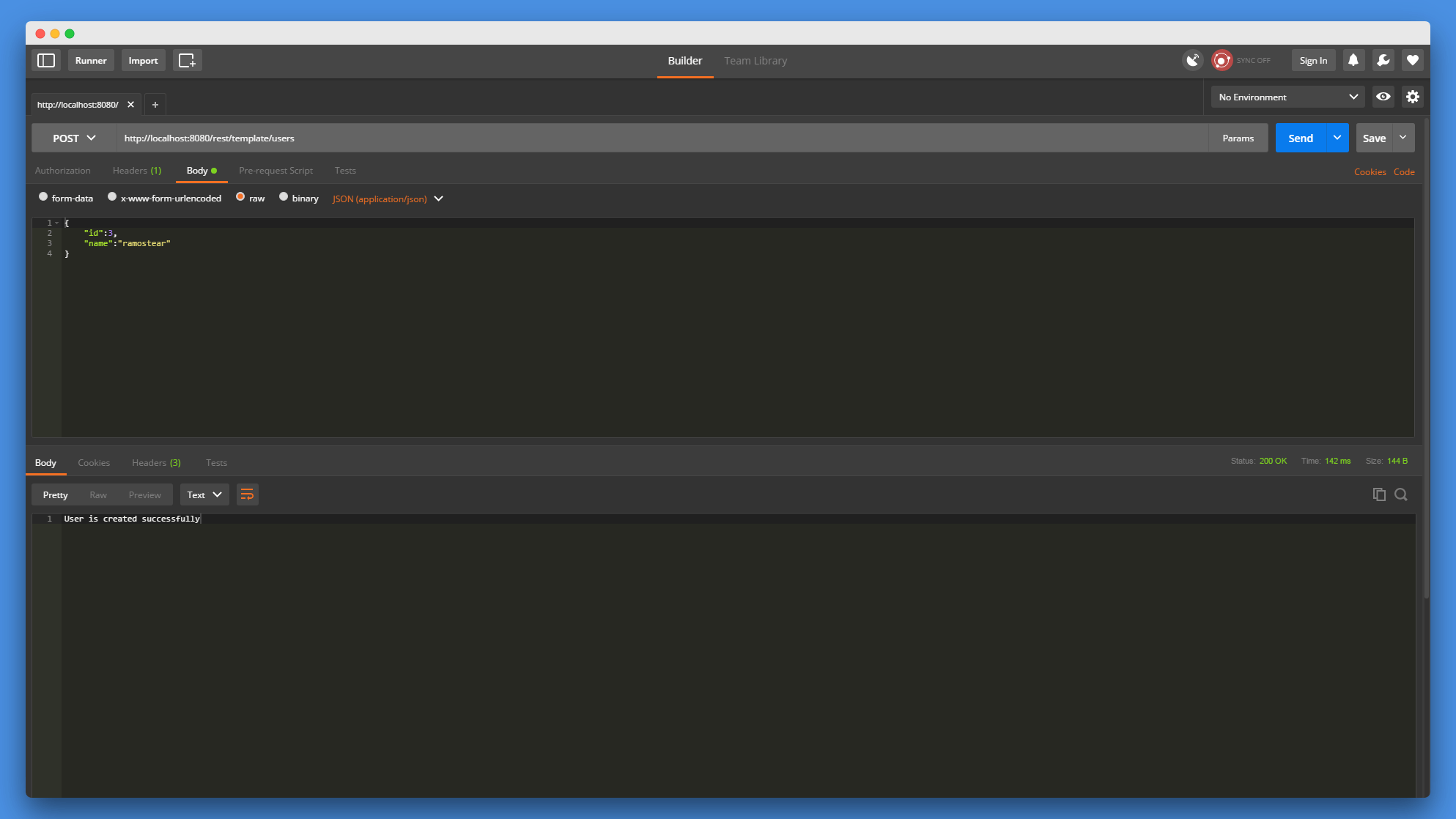

7.2 通过RestTemplate新增用户

请求URL: http://localhost:8080/rest/template/users

请求方法:POST

参数:{“id”:3,”name”:ramostear}

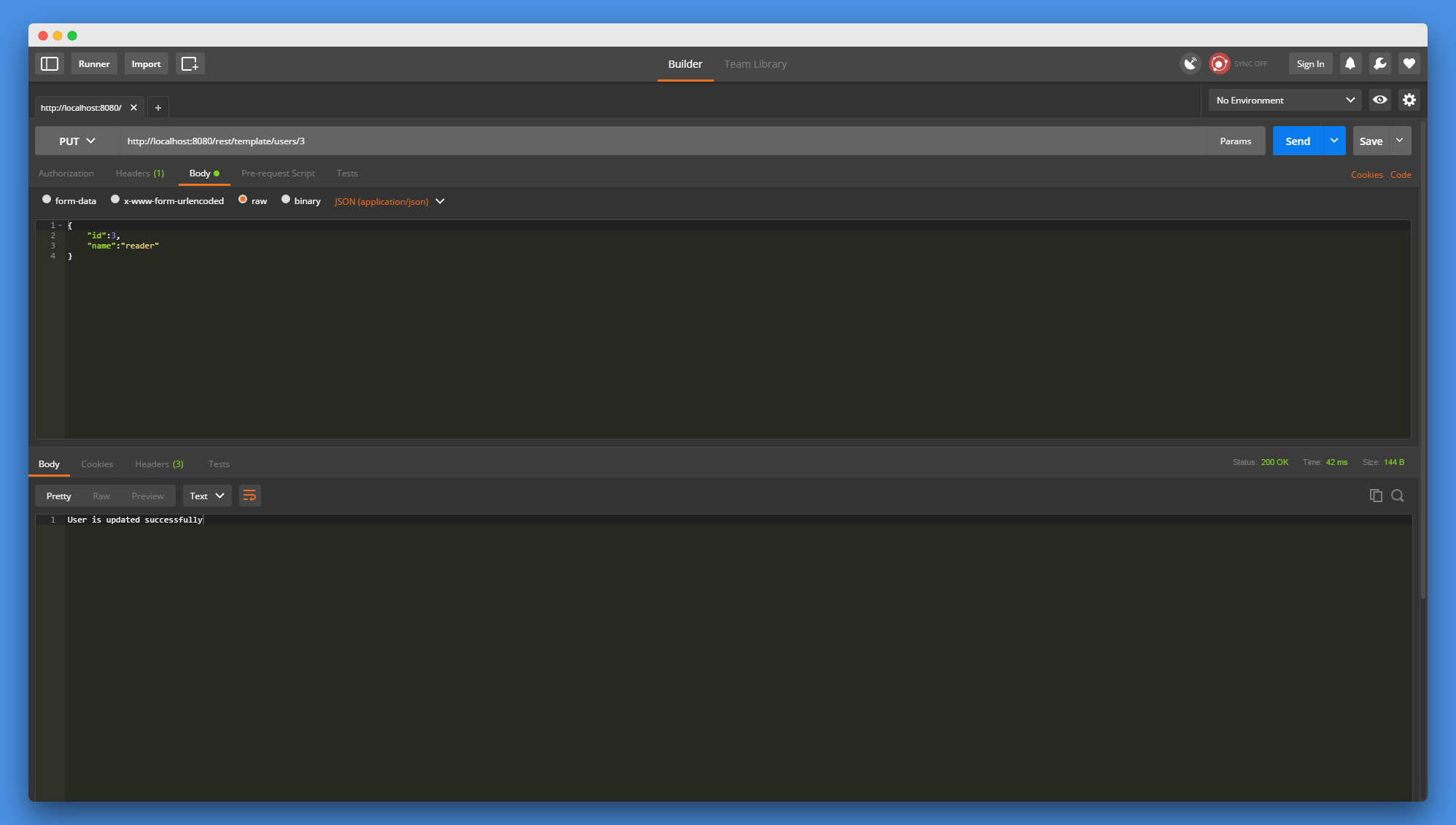

7.3 通过RestTemplate更新用户

请求URL: http://localhost:8080/rest/template/users/3

请求方法:PUT

参数:{“id”:3,”name”:”reader”}

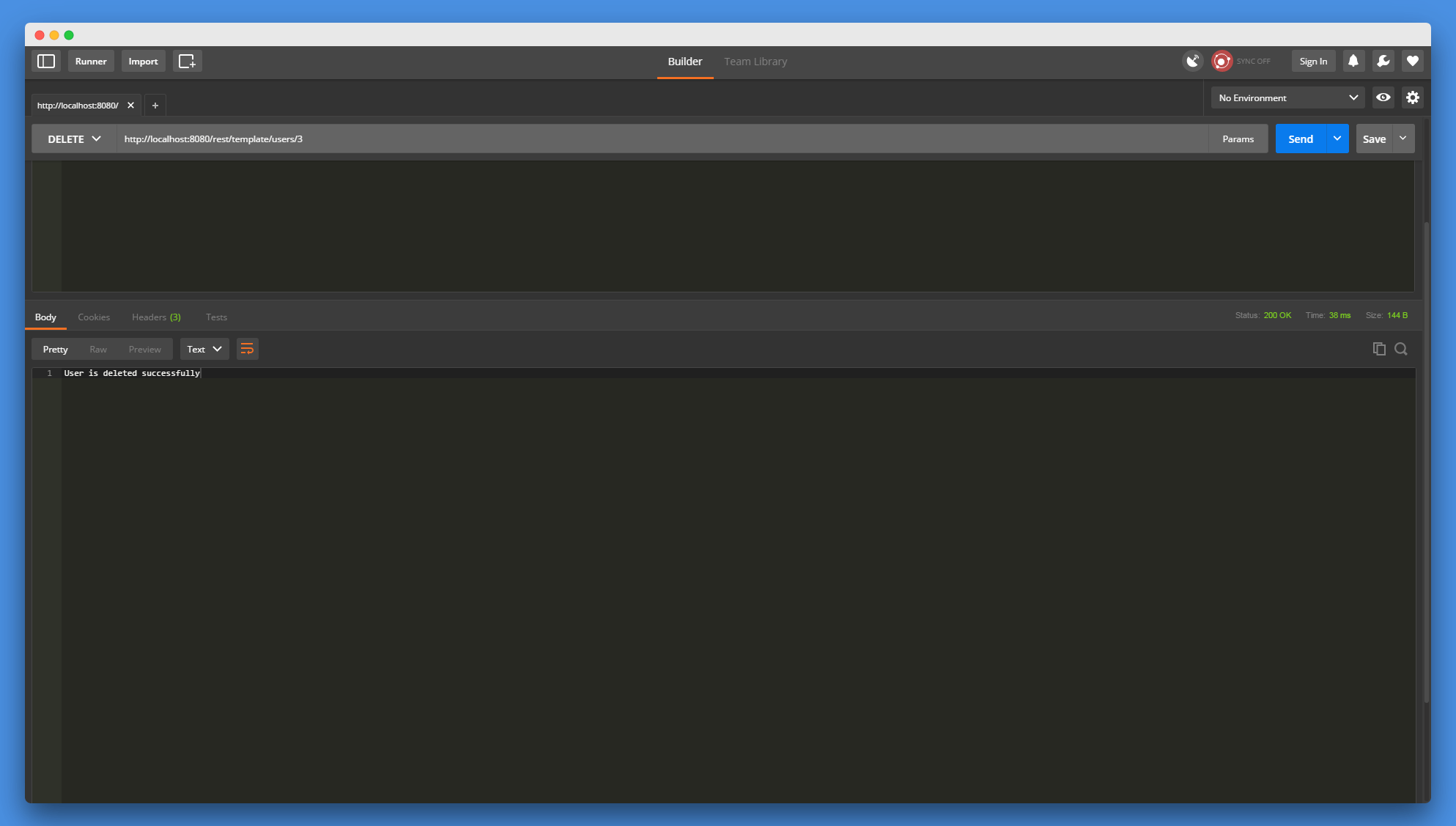

7.4 通过RestTemplate删除用户

请求URL: http://localhost:8080/rest/template/users/3

请求方法:DELETE

参数:无

在Spring Boot中使用过滤器

在Spring Boot中使用过滤器

Spring Boot (九)— 过滤器

过滤器被用于过滤应用程序的HTTP请求和响应,我们可以在请求发送到控制器之前对请求进行过滤,或者在响应发送到客户端之前进行过滤。在本章节中,通过一个简单的例子来展示在Spring Boot中如何使用过滤器,首先通过一张图来说明过滤器的使用步骤:

![](https://cdn.ramostear.com/2019-03-07-18-25-23-d1af3dce816741c39efe69da9618f3a6.png)![](https://cdn.ramostear.com/2019-03-07-18-25-23-d1af3dce816741c39efe69da9618f3a6.png)

1. 创建过滤器

在Spring Boot中,自定义的过滤器需要实现Filter接口中的方法,并使用@Component注解进行标注,具体代码如下:

package com.ramostear.application.filter;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;

import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import java.io.IOException;

/**
 * @author : ramostear
 * @date : 2019/3/7 0007-16:12
 */
@Component
public class UserServiceFilter implements Filter{

    private static final Logger logger = LoggerFactory.getLogger ( UserServiceFilter.class);

    @Override
    public void init(FilterConfig filterConfig) throws ServletException {}

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse,
                         FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest request = (HttpServletRequest)servletRequest;
        logger.info ( "Request url : " + request.getRequestURL ());
        logger.info ( "Request method : "+request.getMethod ());
        filterChain.doFilter ( servletRequest,servletResponse );
    }

    @Override
    public void destroy() {}
}

在上述的代码中,当请求发送到控制器之前,过滤器生效,将从ServletRequest对象中读取请求的地址以及请求的方式。

2. 控制器类

接下来,定义一个简单的控制器,用于处理客户端发送的请求,本章节中的控制器我们沿用之前章节中的控制器:

package com.ramostear.application.controller;

import com.ramostear.application.model.User;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.PostConstruct;
import java.util.HashMap;
import java.util.Map;

/**
 * @author : ramostear
 * @date : 2019/3/7 0007-16:28
 */
@RestController
public class UserServiceController {

    private static Map<Long,User> userRepo = new HashMap<> ();

    @PostConstruct
    public void initUserRepo(){
        User admin = new User ().setId ( 1 ).setName ( "admin" );
        userRepo.put ( admin.getId (),admin );

        User editor = new User ().setId ( 2 ).setName ( "editor" );
        userRepo.put ( editor.getId (),editor );
    }


    @GetMapping("/users")
    public ResponseEntity<Object> getUser(){
        return new ResponseEntity<> (userRepo.values (), HttpStatus.OK);
    }

}

getUser方法用于返回用户存储库中的所有用户信息,映射地址为:“/users”

3. 运行并测试

接下来,你可以使用Maven命令:mvn clean install名来创建一个jar文件,并使用java -jar jarfile命令来运行程序。下面是程序运行成功后的控制台窗口截图:

可以看到,我们的应用程序在Tomcat服务器上以8080端口启动成功。现在,打开Postman测试应用程序,以GET的方式打开请求地址:http://localhost:8080/users ,并观察返回的信息:

然后,你可以在控制台窗口中看到如下的输出信息:

spring boot中使用拦截器

spring boot中使用拦截器

Spring Boot (八)— 拦截器

在Spring Boot应用程序中,可以使用拦截器对Request请求到达控制器前和Response响应发送到客户端前进行拦截,并做相应的操作,如添加请求头信息或者进行鉴权等操作。在本章节中,我将演示如何在Spring Boot应用程序中使用拦截器。

在开始正文之前,我们先通过一张图来了解Spring Boot应用程序中拦截器的使用步骤:

首先,我们需要定义一个拦截器类,并使用@Component注解进行标注,此外,该拦截器类还需要实现HandlerInterceptor接口的三个方法:

  • preHandle() : 用于在请求发送到控制器前执行操作
  • postHandle : 用于在将响应发送到客户端之前进行操作
  • afterHandle : 用于在完成请求和响应后执行操作

1. 创建拦截器 — UserServiceInterceptor.java

package com.ramostear.application.interceptor;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.lang.Nullable;
import org.springframework.stereotype.Component;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * @author ramostear
 * @create-time 2019/3/6 0006-23:55
 * @modify by :
 * @since:
 */
@Component
public class UserServiceInterceptor implements HandlerInterceptor {

    private static final Logger logger = LoggerFactory.getLogger(UserServiceInterceptor.class);

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        logger.info("Pre handle method is calling.");
        logger.info("Request URL is : "+ request.getRequestURL());
        return true;
    }

    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, @Nullable ModelAndView modelAndView) throws Exception {
        logger.info("Post handle method is calling.");
        logger.info("Response Status is : "+response.getStatus());
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, @Nullable Exception ex) throws Exception {
        logger.info("Request and Response is completed.");
    }
}

在上述的拦截器中,我们在请求发送到控制器之前,记录了当前请求的URL地址,在控制器执行完操作响应客户端之前,记录了当前响应的状态码;最后,在完成请求和响应后,记录请求和响应已经完成的消息。

2. 注册拦截器

接下来,我们需要将定义好的拦截器注册到拦截器注册表中。在Spring Boot 2.0中,我们可以通过扩展WebMvcConfigurationSupport类来注册我们的拦截器:

package com.ramostear.application.config;

import com.ramostear.application.interceptor.UserServiceInterceptor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;

/**
 * @author ramostear
 * @create-time 2019/3/7 0007-2:42
 * @modify by :
 * @since:
 */
@Component
public class UserServiceInterceptorConfig extends WebMvcConfigurationSupport{

    @Autowired
    UserServiceInterceptor userServiceInterceptor;

    @Override
    protected void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(userServiceInterceptor);
    }
}

说明:在Spring Boot 2.0及以后的版本中,WebMvcConfigurerAdapter类已经被废弃掉了,所以我们可以选择直接实现WebMvcConfigurer 接口中的方法来注册自定义拦截器,也可以选择扩展WebMvcConfigurationSupport类来注册自定义的拦截器。这里采用扩展WebMvcConfigurationSupport类的方式注册自定义的拦截器。

以下是Spring 官方的文档信息:

/**
* @author Rossen Stoyanchev
* @since 3.1
* @deprecated as of 5.0 {@link WebMvcConfigurer} has default methods (made
* possible by a Java 8 baseline) and can be implemented directly without the
* need for this adapter
*/
@Deprecated
public abstract class WebMvcConfigurerAdapter implements WebMvcConfigurer {
    ...
}

3. 控制器 — UserServiceController.java

我们将定义一个控制器来处理客户端的请求,客户端通过HTTP GET方法请求用户资源信息:

package com.ramostear.application.controller;

import com.ramostear.application.model.User;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.PostConstruct;
import java.util.HashMap;
import java.util.Map;

/**
 * @author ramostear
 * @create-time 2019/3/7 0007-2:51
 * @modify by :
 * @since:
 */
@RestController
public class UserServiceController {

    private static Map<Long,User> userRepo = new HashMap<>();

    @PostConstruct
    public void initUserRepo(){
        User admin = new User().setId(1).setName("admin");
        User editor = new User().setId(2).setName("editor");
        userRepo.put(admin.getId(),admin);
        userRepo.put(editor.getId(),editor);
    }

    @GetMapping("/users")
    public ResponseEntity<Object> getUsers(){
        return new ResponseEntity<>(userRepo.values(), HttpStatus.OK);
    }

}

4. POJO类 — User.java

用户信息模型的POJO类代码如下所示:

package com.ramostear.application.model;

import lombok.Data;

/**
 * @author ramostear
 * @create-time 2019/3/6 0006-23:52
 * @modify by :
 * @since:
 */
@Data
public class User {

    private long id;

    private String name;

    public User setId(long id){
        this.id = id;
        return this;
    }

    public User setName(String name){
        this.name = name;
        return this;
    }
}

5.应用主类 — InterceptorApplication.java

应用程序的主类代码如下所示:

package com.ramostear.application;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class InterceptorApplication {

    public static void main(String[] args) {
        SpringApplication.run(InterceptorApplication.class, args);
    }

}

6. Maven构建文件 — pom.xml

maven 构建文件代码清单如下所示:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.3.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.ramostear</groupId>
    <artifactId>interceptor</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>interceptor</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

7. 运行程序并测试

你可以使用maven的“mvn clean install”命令来进行打包,然后使用java -jar 命令来运行项目,也可以使用集成开发环境IDEA或者Eclipse来打包运行项目。

现在,我们的应用程序在Tomcat服务器上使用8080端口启动成功,控制台输出信息如下所示:

接下来,启动Postman应用程序,在地址栏输入:http://localhost:8080/users ,并以GET的方式发送请求,如下图所示:

测试显示,控制器成功返回了用户信息,最后,让我们观察控制台窗口输出的信息:

通过控制台显示的信息可知,我们的拦截器已经成功的对客户端的请求以及服务端的响应进行了拦截。
